To map where a vehicle has driven for a given period of time, follow these steps:


  1. Log in to the CalAmp K-12 mobile app. (See Logging In and Out for details, if needed.)

    The Filter Vehicles screen will appear.

  2. Tap the group name containing the vehicle whose history you want to map.

  3. Tap the Vehicle List tab.

    The app will display a list of the vehicles in that group.

    Note: You can search for the vehicle by tapping in the Search bar at the top, typing its name/number, and then tapping .
  4. Tap the name of the bus.

    The Vehicle Details page will appear, showing the vehicle's activity for today.

    Each icon on the map represents the event the vehicle's GPS device reported to CalAmp K-12 at that moment in time at that location. The icon meanings can vary from customer to customer as they are customizable, but here are some of the common ones:

    By default, all vehicle events will be displayed.

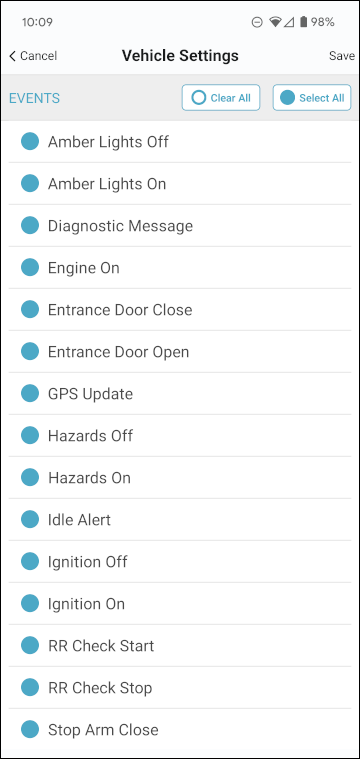

  5. Optionally, to choose just a few events, tap  at the top right of the screen, and on the Vehicle Settings page, follow these steps:


    1. Tap Clear All to deselect all the events.
      Note: If you want to remove just a couple events, leave Select All chosen and then deselect the ones you don't want to see.
    2. Select just the events you want to map.

    3. Tap Save at the top right.

  6. To change the date range that the history is displaying, tap  at the top right of the screen, and on the Vehicle Settings page, follow these steps:

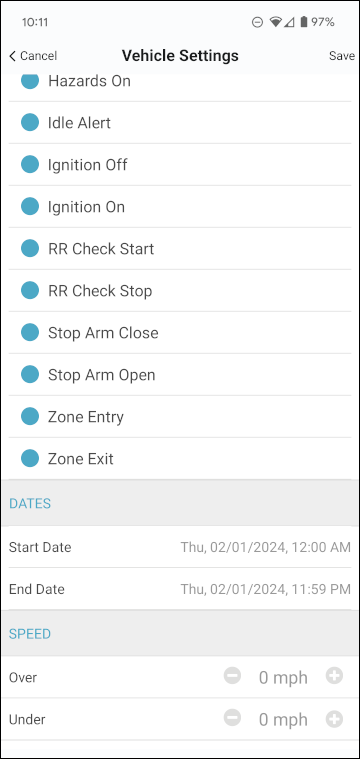

    1. Scroll down past the Events list to the Dates section.

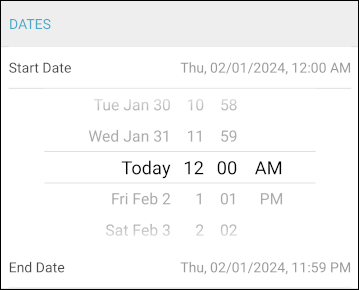

    2. Tap Start Date.

      A date/time selector will appear.

    3. Tap Today and scroll until you reach the beginning date of the time period you want to view.

    4. Tap 12 and scroll to the hour of the day you need.

    5. Tap 00 and scroll to the minutes value.

    6. To change to a p.m. value, tap AM and drag up to PM.

    7. Tap End Date and choose the date and the time of the last date of activity to map.

    8. Tap Save at the top right.

  7. To check the speed history of the vehicle, tap  at the top right of the screen, and on the Vehicle Settings page, follow these steps:

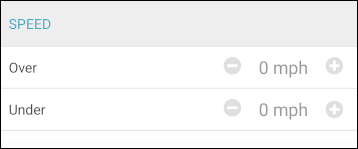

    1. Scroll down past the Events and Dates sections to the Speed area.


    2. To set the minimum speed value to view, tap / (to raise the number) and / (to lower the number) to the right of Over.
      Note: For example, if you set the Over value to 55 mph (or kph), only events that occurred when the bus was traveling over 55 will be shown.
    3. You can set an Under value to set a maximum speed of travel.

    4. Tap Save at the top right.

  8. You can step through the events for the time period you specified using the controls below the map as follows:

    The events are numbered, beginning with 1 for the first event reported to CalAmp K-12 in the date range. In the preceding figure, you can see that the first of 390 historical events is being displayed.

    1. To move from the first reported event to the second one, tap .

    2. Continue tapping  to view the events one by one.
      Note: You can tap  to move back to seeing the preceding event on the map.
    3. You can tap and drag the slider handle () to move to later or earlier events in the time span (by sliding right or left, respectively).

    4. To progress forward or backward for a larger period of time, you can tap the slider bar. (Don't tap and drag the slider handle; tap before or after it on the bar itself.)

  9. You can tap  at the bottom right of the map to turn on Satellite view. (Tap it again to turn off Satellite view.)


This is the data you'll find in the grid:


  • Vehicle: The identifier for the vehicle, usually the bus number.

  • Time: The date and time of the event being displayed on the map.

  • Event: The event reported to CalAmp at the minute you are viewing.

  • Speed: The vehicle's speed in miles or kilometers per hour at that time.

  • Heading: If the vehicle was in motion, the direction it was heading.

  • Location: The vehicle's address (or zone) at the time being viewed.

  • RSSI: RSSI stands for received signal strength indicator, which measures how well the vehicle's device can obtain a signal. (RSSI's scale is from -26 to -100, and values higher than -60 are good.)

  • SATS: The GPS satellite count. (A number of 8 or higher indicates that the bus's LMU has reliable connectivity.)
